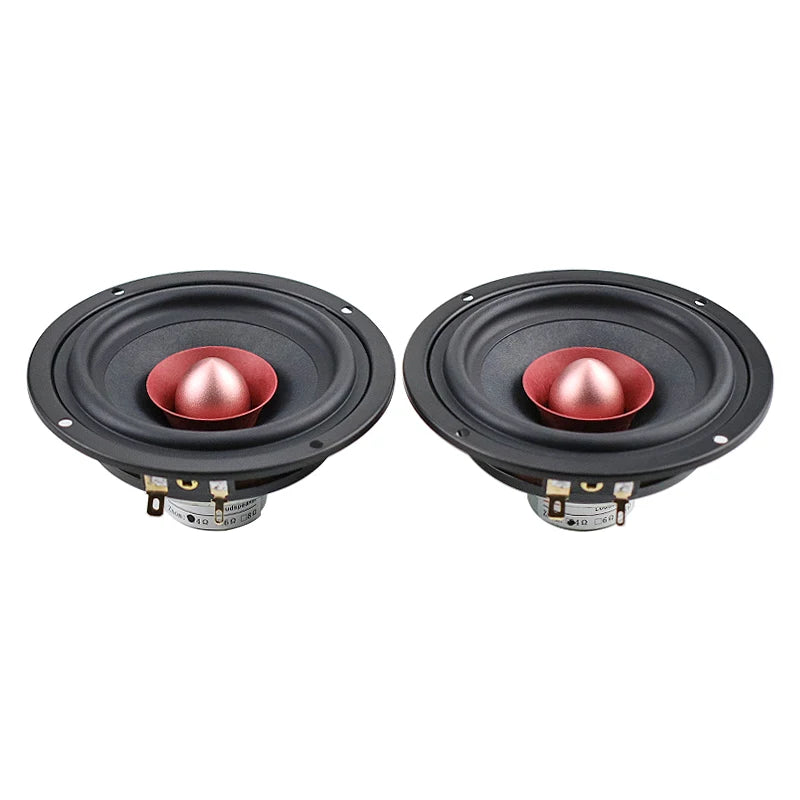

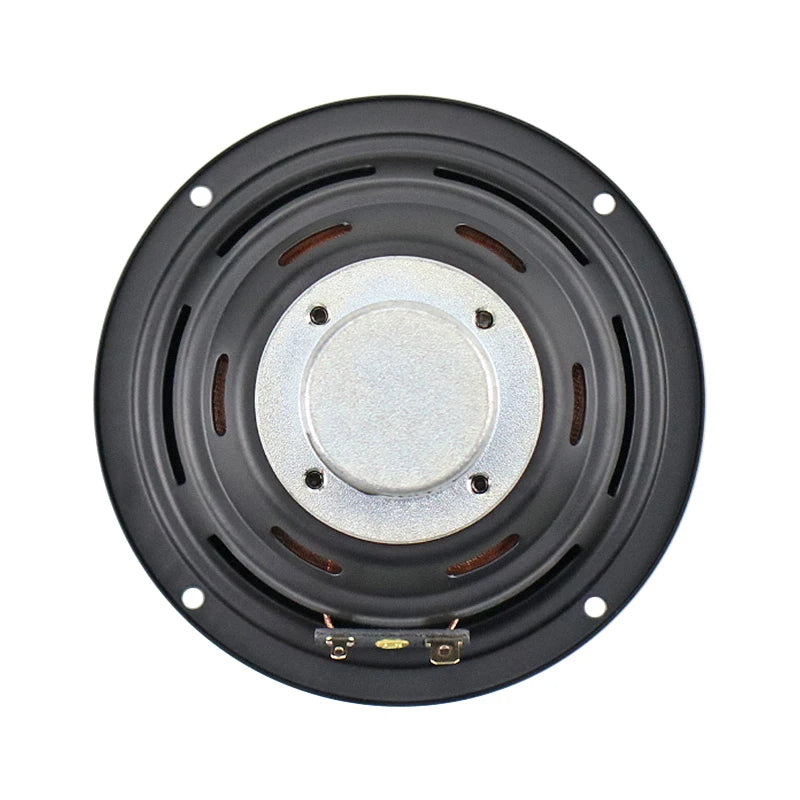

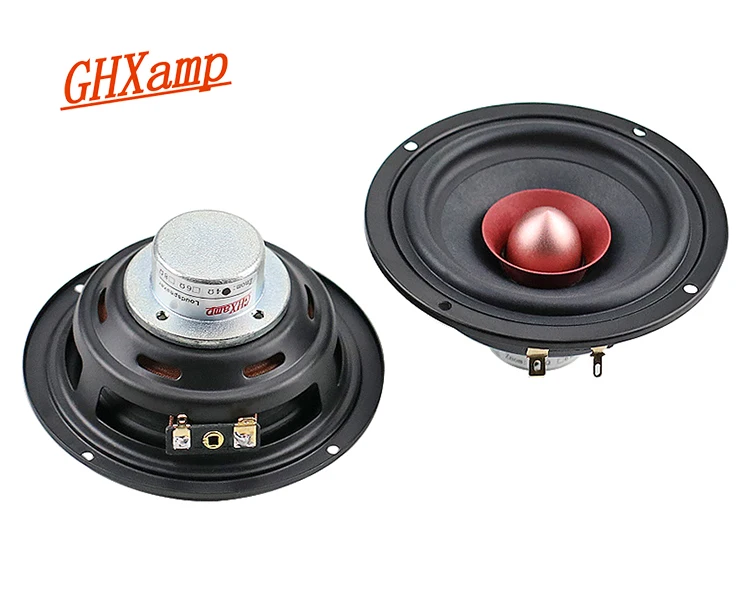

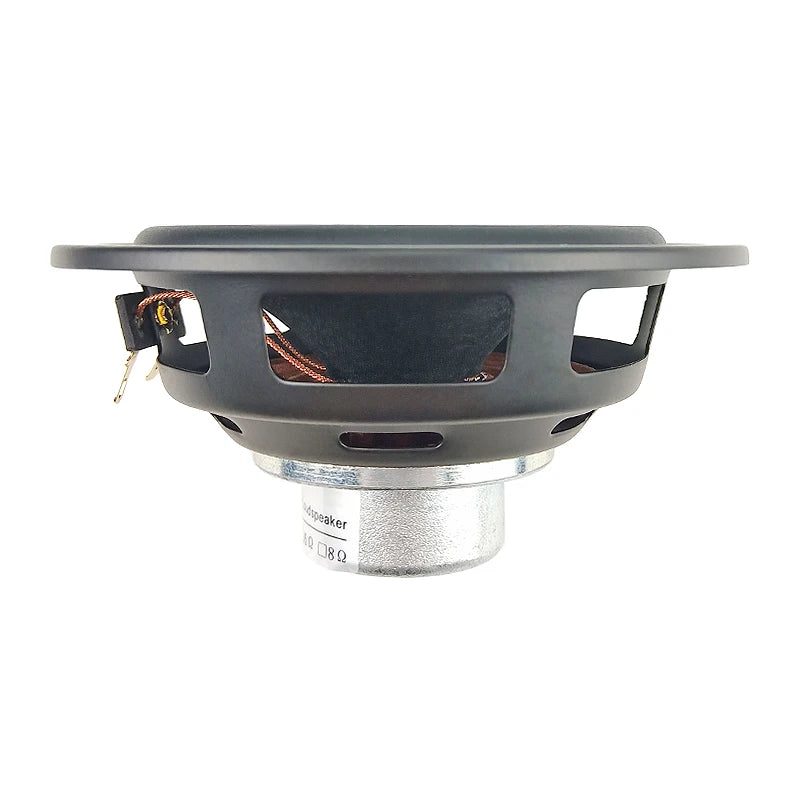

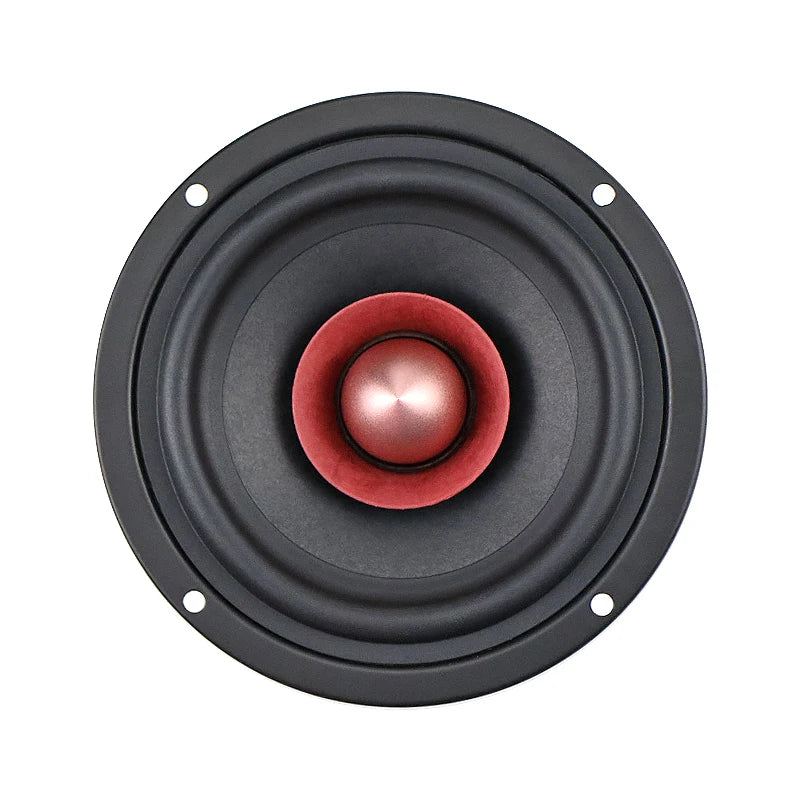

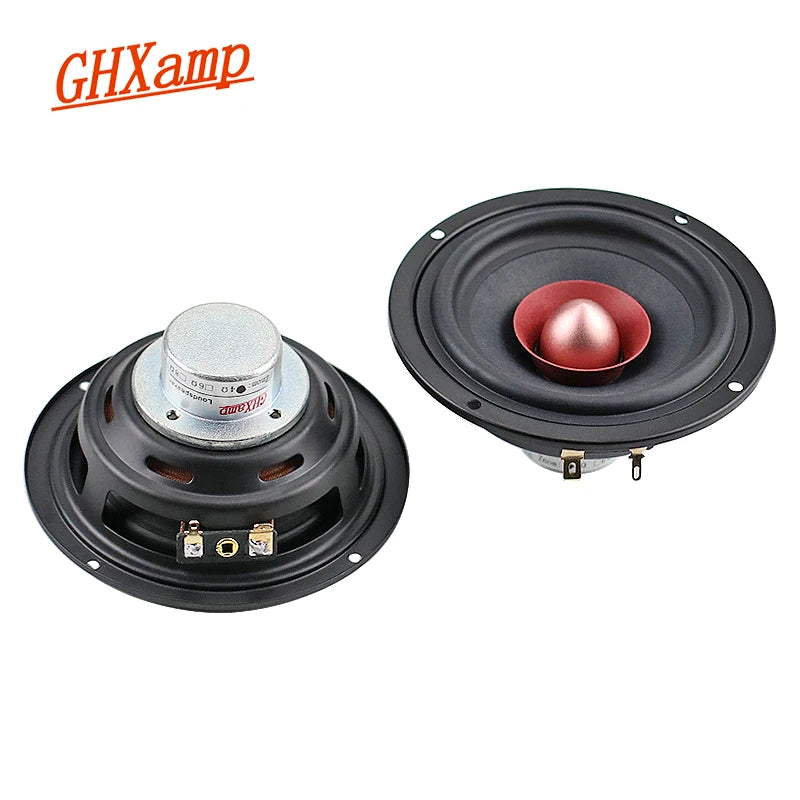

GHXAMP 4 Inch HIFI Full Range Speaker Unit DIY 4ohm 25W Neodymium iron Boron Cotton hemp Fiber Vocal instruments 116MM 2pcs

GHXAMP 4 Inch HIFI Full Range Speaker Unit DIY 4ohm 25W Neodymium iron Boron Cotton hemp Fiber Vocal instruments 116MM 2pcs

Regular price £26.92 GBP
Regular price £26.92 GBP Sale price £26.92 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity

SPECIFICATIONS

Audio Crossover: Full-Range

Battery: No

Brand Name: GHXAMP

Built-in Microphone: No

Cabinet Material: Wood

Category: Speakers

Certification: CE

Channels: 2 (2.0)

Communication: Bluetooth,Audio Line

Cone material: cotton fiber + bark fiber

Display Screen: No,No

Feature: None

Frequency Range: Other

Frequency response range: 78Hz-19.8KHz

High-concerned chemical: None

Home theater sound system: Yes

Impedance: 4 Ohm

Inbox adaptor: No

Input Power(W): 50-99 W

Input/Output: Other

Intelligent Personal Assistant: None

Material: Metal

NET Weight: 260g/pc

Number of Loudspeaker Enclosure: 2

Origin: Mainland China

Output Voltage: 25 W

PMPO: no

Playback Function: DVD,Radio,CD,MP3,Other

Power Source: None,None

Power range: 25W

Remote Control: No

Sensitivity: 88.5+-3DB

Sound Mode: Stereo Sound Mode,Standard Mode,3EQ Modes,Other

Speaker Classification: NdFeB speaker

Speaker Type: Bookshelf

Support APP: No

Support Apt-x: No

Support Memory Card: No

Type: 4 Inch Full frequency speaker

Use: Home

Voice Control: No

Waterproof: No


Description:

1. Magnetic circuit system: rare-earth aluminum-iron-boron magnetic structure + short-circuit ring copper sleeve, solves the thoroughness of medium and high frequency from the starting point.
2. The cones are mainly bass and mid-high, and cotton fibers are selected through various screenings.Treble cup material selected bamboo + bark fiber, high-frequency thorough and not harsh.
3. high temperature resistant copper clad aluminum wire with Kapton skeleton + high heat dissipation coating, the speaker heart has excellent quality.
4. Pure copper plated gold terminals ensure zero resistance contact and do not let go of a music signal, achieving high fidelity.

Features:

Product name:4 inch full range speaekr
Impedance: 4 Ohm (if you need 8Ohm,please leave me message).
Rated power: 25W
Frequency response range: 78Hz-19.8KHz
Sensitivity: 88.5+-3dB
Cone material: cotton fiber + bark fiber
Vas: 7L
Qts: 0.7
BL: 1.99T
MMS: 2.3g
Voice coil skeleton: Kapton
Linear displacement: 6.5mm
Cabinet type: guided phase
Recommended phase guide tube: inner diameter 37mm, length 100mm.
Voice coil diameter: 25mm

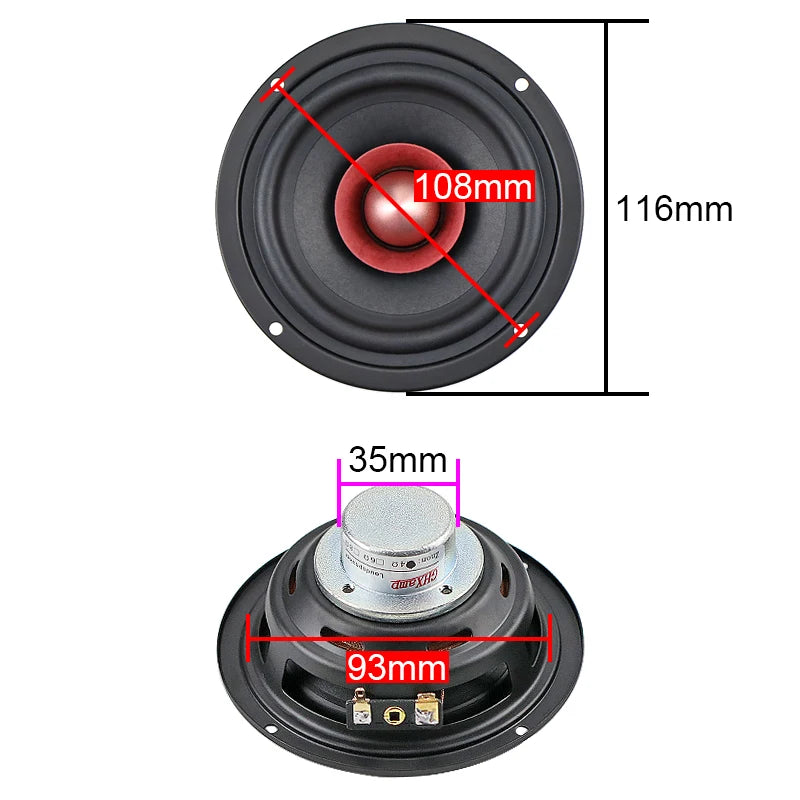

Magnetic steel diameter: 35mm
Horn diameter: 116mm
Diagonal screw hole distance: 108mm
Height:54mm
Net weight:260g/pc

Package:

2PCS
